Helios Welding Visualization System
$1,100
Capture every intricate detail of your welding process with exceptional clarity. Designed for high-speed cameras, our Helios System minimizes shadows, glare, and flickering, guaranteeing pristine slow-motion welding footage.
Whether you’re working in a welding lab or a small workshop, this portable setup is easy and quick to set up and operate, allowing you to take it anywhere your projects take you.
Coming soon! Inquire for more information

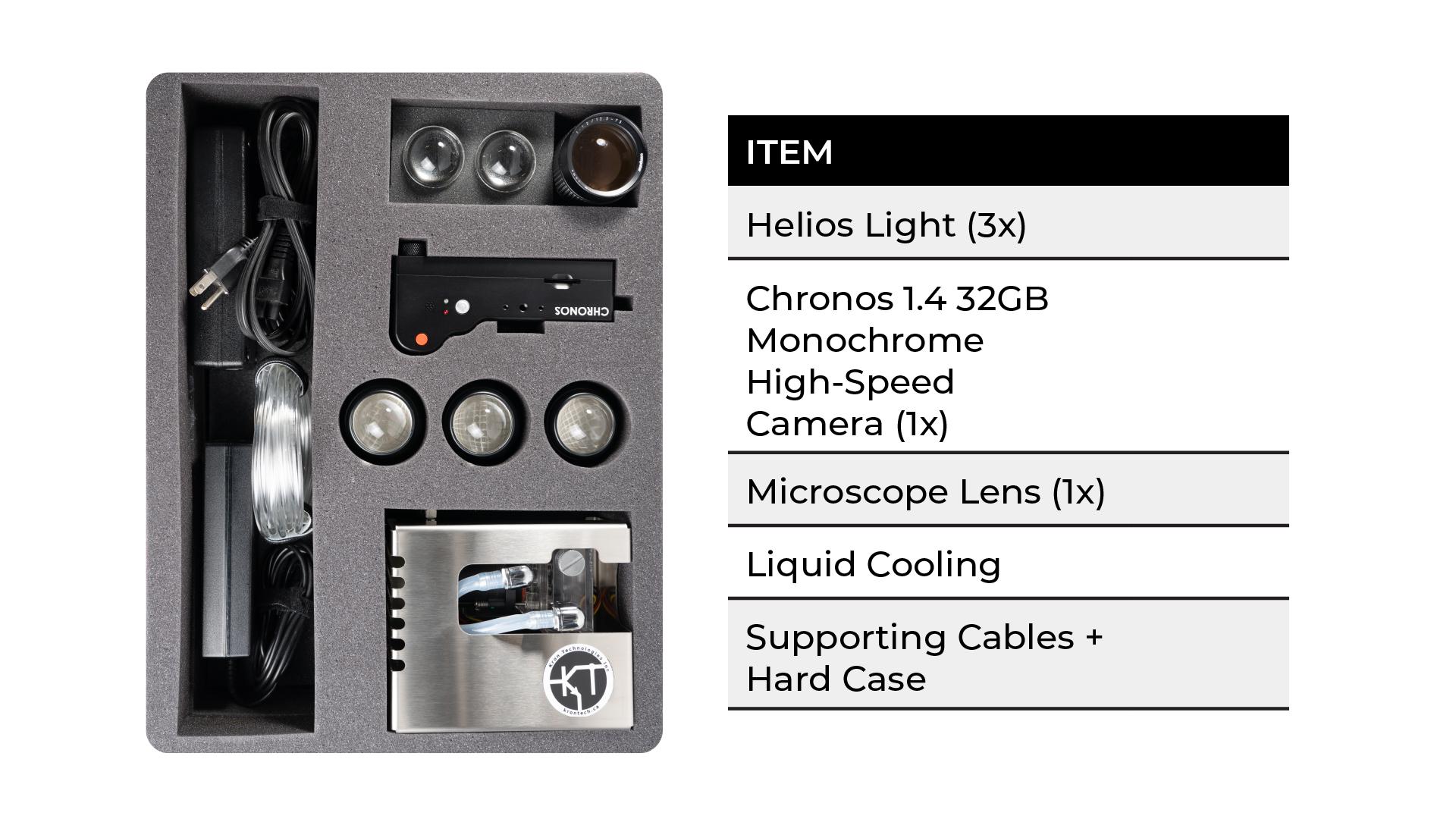

Suggested Kit Pricing
Main Features
Unparalleled Illumination
Capture intricate details with exceptional clarity in both resolution and framerate.
Without Helios
With Helios
No PC Needed
Quickly review slow-motion footage on a touch-screen immediately after recording.
Simple Setup
Convenient Saving Options
Save footage to an SD card, USB thumb-drive, SSD, or networked folder for further analysis.
Application Sheet
Specifications

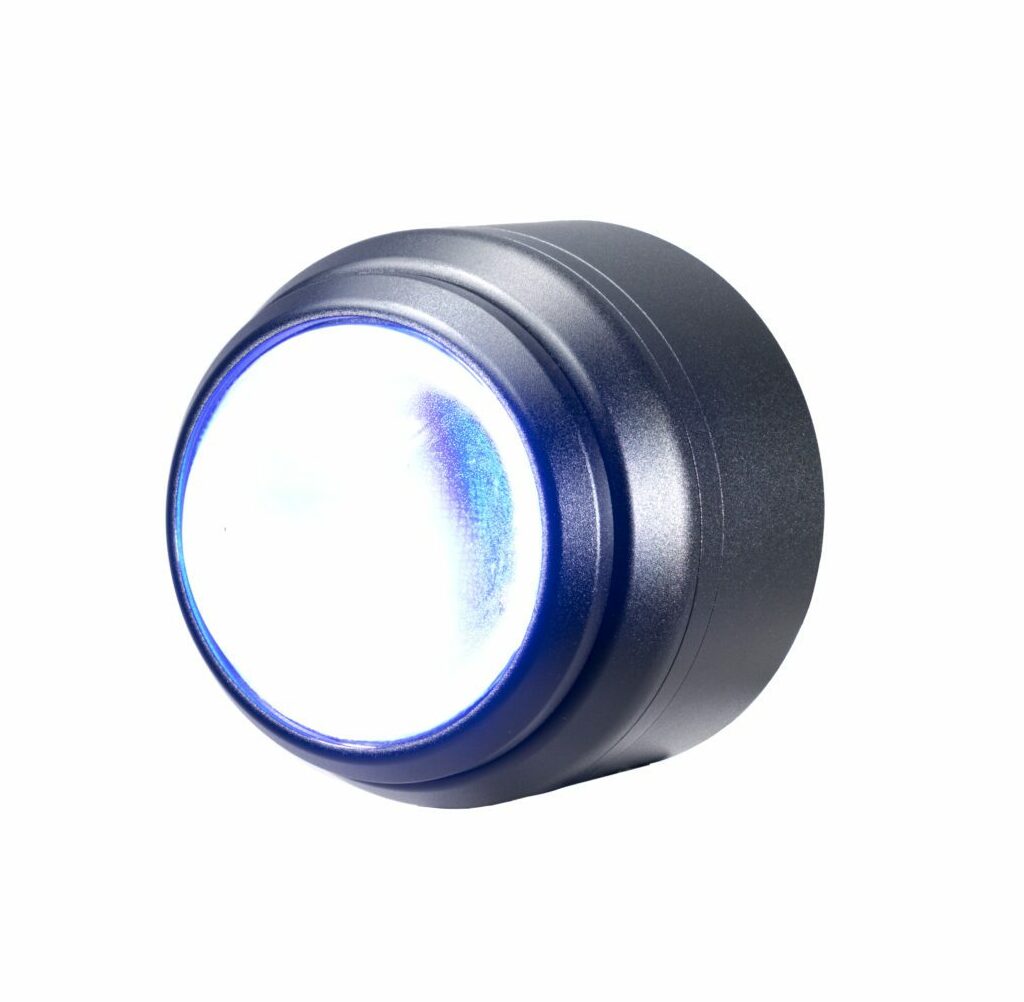

| HELIOS LIGHT | |
|---|---|
| Peak Power | 1000 W (Pulsed) |
| Memory | 445nm, Royal Blue |

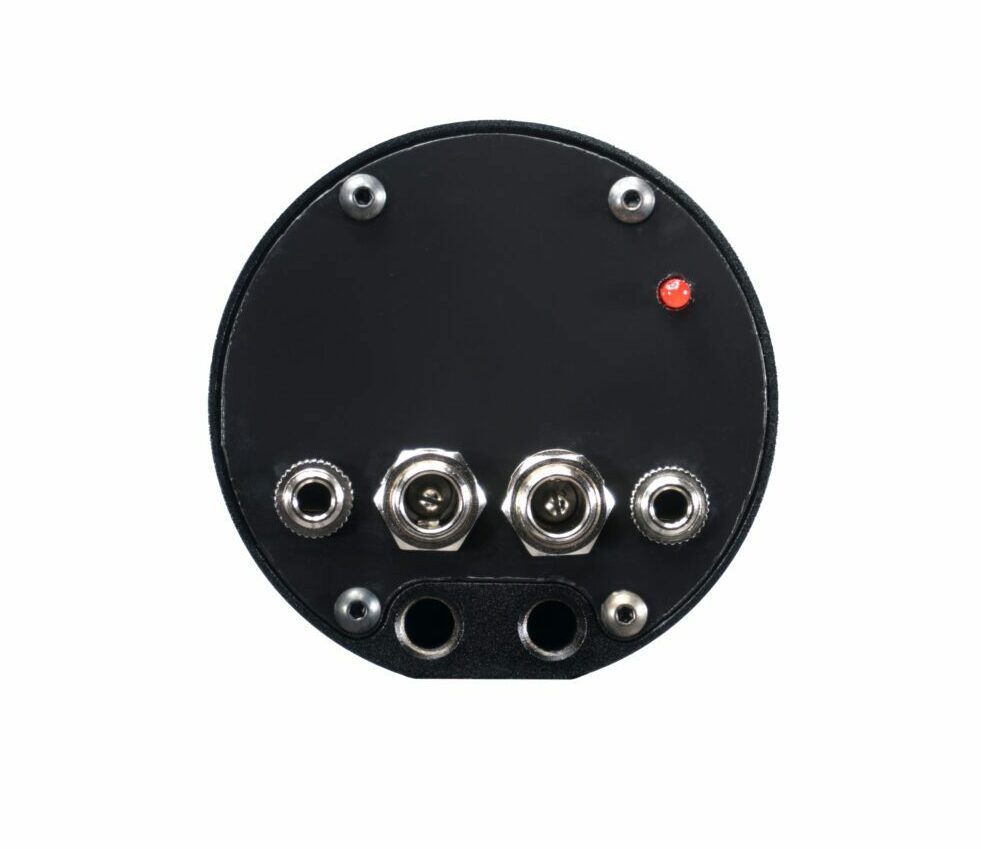

| Power Input | 24 Volt DC Power Input / Output |
| Signal | Pulse Signal Input / Output |
| Cooling | Air or Liquid Cooling Depending on Application |
| Temperature | Built-in overtemperature protection |
| Glass Lens | User-replaceable disposable glass lens |
| Dimensions | 56mm (Back to lens) x 57mm diameter 71mm w/ watercooling nozzles |
| Weight | 0.217 kg (0.48 lbs) |
| Mounting | M4 and 1/4” 20 |
| Preliminary specifications, subject to minor changes. | |
Set up Diagrams
Capture every intricate detail of your processes with exceptional clarity. See how you can set up your Helios Visualization Kit for optimal results.

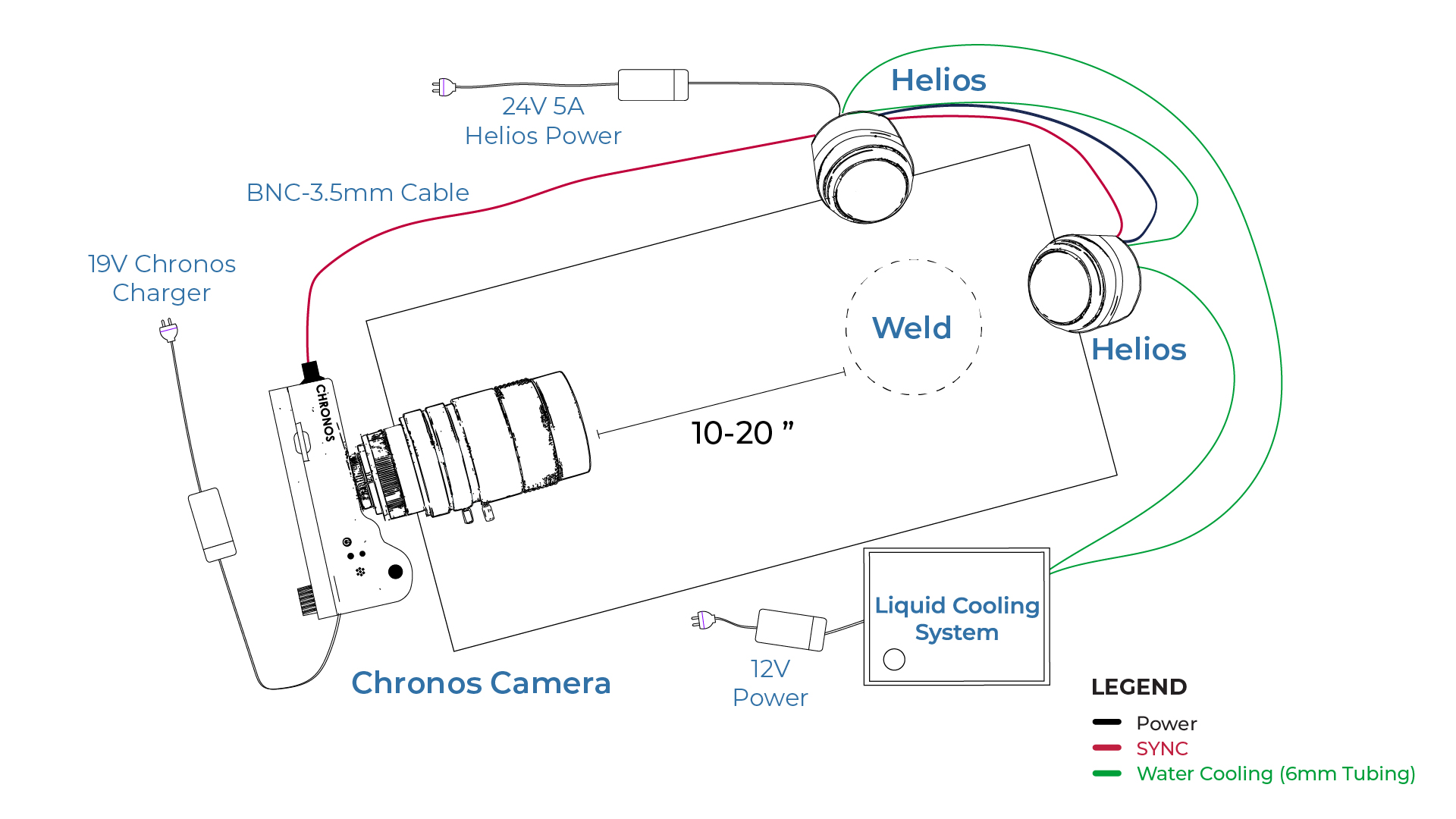

With Liquid Cooling

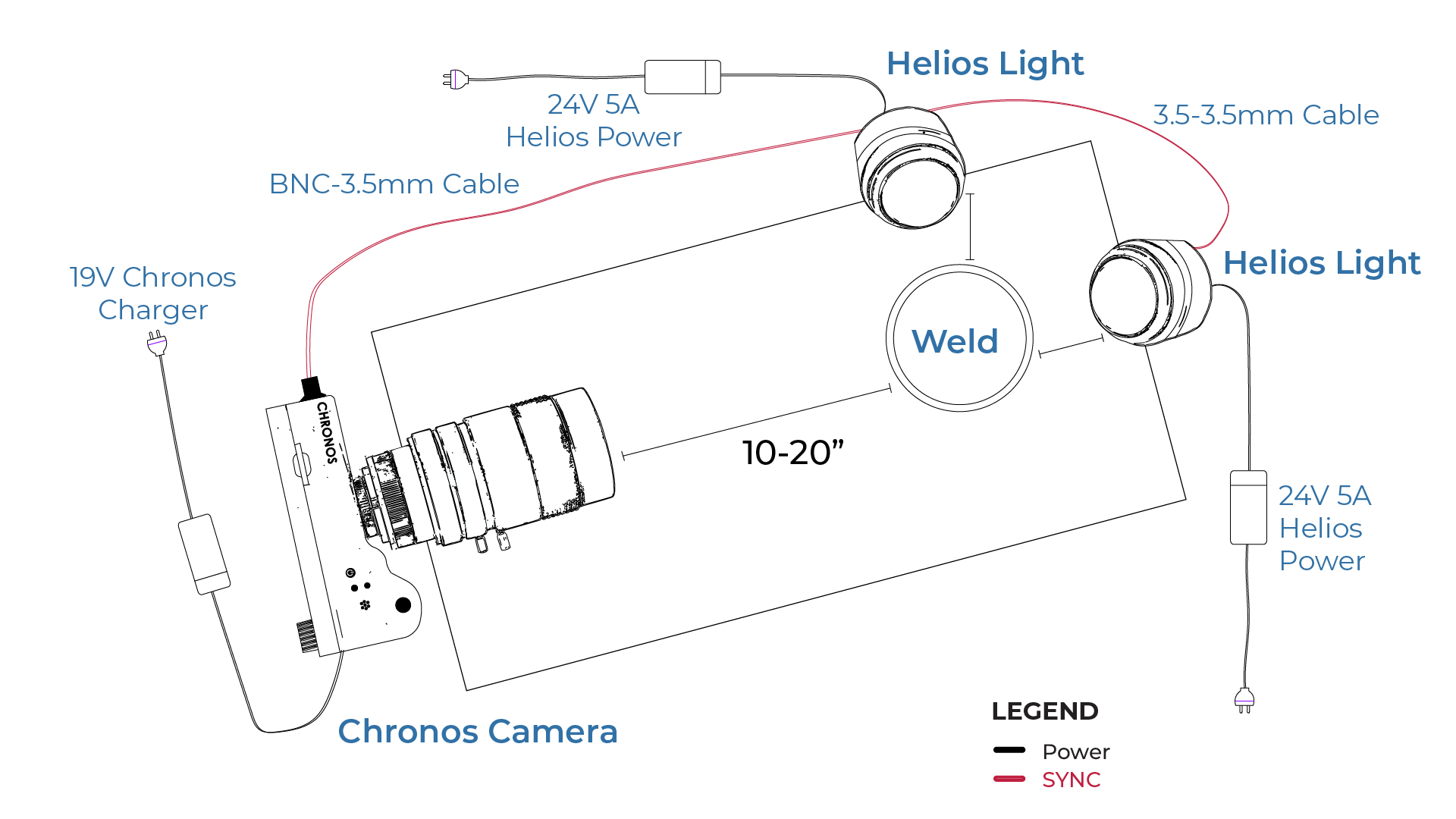

Without Liquid Cooling
