Chronos 1.4

Chronos 2.1-HD

Chronos 4K12 NEW

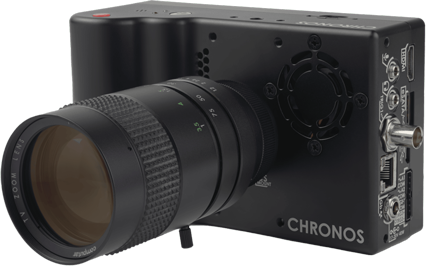

Chronos 1.4

1.-Chronos-1.4---Shot-1---Front-with-Computar_213

From $4,500

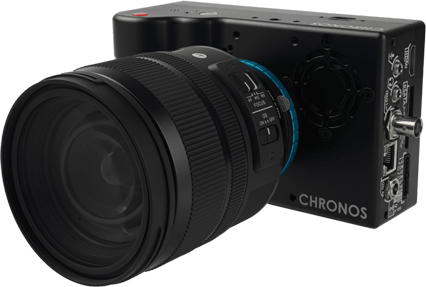

Chronos 2.1-HD

2.-Chronos-2.1---Shot-1---front-with-sigma_213

From $6,800

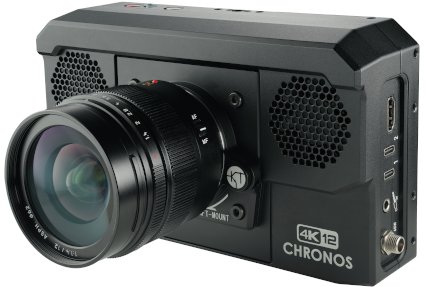

Chronos 4K12 NEW

Chronos 4K12

From $15,995

Overview

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Maximum Resolution

1280 x 1024
at 1,069 FPS
1920 x 1080 (HD)
at 1,000 FPS
4096 x 2160 (4K)
at 1,397 FPS

Minimum Resolution

320 x 96
at 40,413 FPS
640 x 96
at 24,046 FPS
128 x 32
at 29,002 FPS

Throughput

1.4 Gigapixels
per second
2.1 Gigapixels
per second
11.8 Gigapixels
per second

Memory Options

8 GB, 16 GB, 32 GB 8 GB, 16 GB, 32 GB 128 GB

Record Time at Max Resolution

4s (8GB), 8s (16GB),
16s (32GB)
2.7s (8GB), 5.5s (16GB),
11s (32GB)
11s (128GB)

Save Formats Uncompressed

CinemaDNG Raw,
TIFF Raw
CinemaDNG Raw,
TIFF Raw
CinemaDNG Raw

Save Formats Compressed

H.264/AVC
MPEG-4 File Format
H.264/AVC
MPEG-4 File Format
H.264/AVC & H.265/HEVC
MPEG-4 File Format

Built-In Storage

- - 1 TB NVMe SSD

Built-In Touchscreen

5" 800x480
High Brightness LCD
5" 800x480
High Brightness LCD
5" 800x480
High Brightness LCD

Built-In Battery

Removable,
1.5 Hour Runtime
Removable,
1.5 Hour Runtime
-

Power Input

17-20 Volts DC
40W
17-20 Volts DC
40W
12-24 Volts DC
60W

Size & Weight (Without Lens)

Handheld
1.06 kg (2.34 lbs)
Handheld
1.06 kg (2.34 lbs)
Handheld
1.32 kg (2.91 lbs)

Image Sensor

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Format

2/3" 4/3" 4/3"

Pixel Size

6.6μm 10μm 4.5μm

Diagonal

10.8mm 22.0mm 22.9mm

Active Area

8.45mm x 6.76mm 19.20mm x 10.80mm 20.74mm x 9.79mm

Crop Factor

3.9 2 2

Sensitivity (ISO)

Color Sensors
320 - 5120 500 - 8000 100, 150, 200, 400

Sensitivity (ISO)

Mono Sensors
740 - 11840 1000 - 16000 200 - 800

Shutter Type

Global Electronic Global Electronic Global Electronic

Shutter Duration

1/FPS to 1μs
(1/1,000,000s)
1/FPS to 10μs
(1/100,000s)
1/FPS to 1μs
(1/1,000,000s)

Dynamic Range

9.4 stops
(56.7 dB)
10.3 stops
(62.4 dB)
11.3 stops
(68 dB)

Bit Depth

12-bit 12-bit 8-bit, 10-bit, 12-bit

Crop Factor at 1920 x 1080 (HD

- 2 4.4

Black Calibration Method

Manual Manual Automatic

Lens Mounts

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Standards Lens Mount

CS/C Mount CS/C Mount Universal Plate

User-Installable Mount Plates

MFT-Mount MFT-Mount C-Mount,
E-Mount, F-Mount, EF-Mount, MFT-Mount

Electronic Lens Control

- - -

Backfocus Adjustment

Adjustable,
Locking Ring
Adjustable,
Locking Ring
Adjustable,
Shim Kit

Infrared Filter

Removable - 650nm Removable - 650nm Removable - 650nm

Recording

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Frame Buffer (RAM)

8 GB, 16 GB, 32 GB 8 GB, 16 GB, 32 GB 128 GB

Simultaneous 60 FPS Recording

spec included spec included spec included

Assistive & Video Processing Features

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Focus Aid /
Peaking

spec included spec included spec included

Over-Exposure
Indicator
(Zebras)

spec included spec included spec included

1:1 Viewfinder
Zoom on LCD

spec included spec included spec included

Histogram
(Linear &
Logarithmic)

- - spec included

Gain

spec included spec included spec included

Color
Temperature /
White Balance

spec included spec included spec included

Color
Matrix

spec included spec included spec included

Text
Overlays

spec included spec included spec included

Calibrated
ICC Profile

- - spec included

Playback & Saving

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Built-In
Storage Media

- - 1 TB NVMe SSD

Save to
External Media

spec included spec included spec included

Save to
Networked
Drive

spec included spec included spec included

On-Camera
Review

Play / Pause /
Mark-Start / Mark-End
Play / Pause /
Mark-Start / Mark-End
Play / Pause /
Mark-Start / Mark-End

On-Camera
File Browser

spec included spec included spec included

Play Footage
Once Saved
to Media

- - spec included

Connectivity

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

USB Port 1

Type-A
(USB 2.0, 480 Mbps)
Type-A
(USB 2.0, 480 Mbps)
Type-C
(USB 3.2 Gen 1, 5 Gbps)

USB Port 1 -
Supported
Modes

Peripheral
Connections (SSD, etc.)
Peripheral
Connections (SSD, etc.)
PC Connection or
Peripheral Connections

USB Port 2

Micro-B
(USB 2.0, 480 Mbps)
Micro-B
(USB 2.0, 480 Mbps)
Type-C
(USB 3.2 Gen 2x2, 20 Gbps)

USB Port 2 - Supported Modes

PC Connection PC Connection Peripheral
Connections (SSD, etc.)

eSATA

spec included spec included -

SD Card

spec included spec included spec included

Gigabit
Ethernet

spec included spec included via USB-C Adapter

Wireless

- - via USB-C Adapter

HDMI
Output

720p or
1080p at 60 FPS
720p or
1080p at 60 FPS
1080p at 60 FPS or 4K at
30 FPS

Triggering & Synchronization

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Trigger Input/
Output Channels

3 3 3

Trigger
Interface

1x BNC +
2x Terminal Block
1x BNC +
2x Terminal Block
4-Pin 3.5mm TRRS Connector

Multiple
Camera
Synchronization

spec included spec included spec included

Power

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Built-In Battery

spec included spec included -

Battery Type

EN-EL4a EN-EL4a -

Runtime

1.5 Hours 1.5 Hours -

Charge Time

2 Hours (0-80%)
with in-camera charger
2 Hours (0-80%)
with in-camera charger
-

Power
Input Jack

Locking Barrel Jack,
5.5mm x 2.5mm
Locking Barrel Jack,
5.5mm x 2.5mm
Locking Barrel Jack,
5.5mm x 2.5mm

Input Voltage

17-20 Volts DC 17-20 Volts DC 12-24 Volts DC

Typical Power
Consumption

40 Watts 40 Watts 60 Watts

D-Tap
Battery Cable
Included?

- - spec included

Mechanical & Environmental

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Enclosure
Material

Anodized Aluminum Anodized Aluminum Anodized Aluminum

Cooling
System

Single Fan Single Fan Dual Fan

Dimensions
(Metric)

155mm x
96mm x 67.3mm
155mm x
96mm x 67.3mm
188mm x
111mm x 53mm

Dimensions
(Imperial)

6.11" x 3.78" x 2.65" 6.11" x 3.78" x 2.65" 7.40" x 4.37" x 2.08"

Weight

1.06 kg (2.34 lbs) 1.06 kg (2.34 lbs) 1.32 kg (2.91 lbs)

Operating
Temperature

-20 °C to +40 °C
(-4 °F to +104 °F)
-20 °C to +40 °C
(-4 °F to +104 °F)
0 °C to +40 °C
(32 °F to +104 °F)

Software & Remote Control

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

REST API

spec included spec included spec included

Network Video
Streaming

spec included spec included spec included

Control via
Web Interface

spec included spec included spec included

Control via
iOS/Android/
Desktop App

Coming Soon Coming Soon Coming Soon

Warranty & Support

Camera Chronos 1.4 Chronos 2.1-HD Chronos 4K12

Standard
Warranty

1 Year 1 Year 1 Year

Extended
Warranty
Options

1 Year Extension 1 Year Extension 1 or 2 Year Extension

User
Manual

Paper, Online PDF Paper, Online PDF Paper, Online PDF

Email
Support

spec included spec included spec included

Telephone
Support

spec included spec included spec included

Resolution And Frame Rate Chart

- CHRONOS 1.4 CHRONOS 2.1-HD

CHRONOS 4K12 New

Bit Depth

12-bit
(68.7 Billion Colors)

12-bit
(68.7 Billion Colors)

8-bit
(16.7 Million Colors)

10-bit
(1.07 Billion Colors)

12-bit
(68.7 Billion Colors)

4096 x 2160 4K

- - 1,397 FPS 1,006 FPS 481 FPS

3840 x 2160 UHD

- - 1,491 FPS 1,006 FPS 481 FPS

2048 x 2016 2K

- - 2,065 FPS 1,082 FPS 518 FPS

1920 x 1080 HD

- 1,000 FPS 3,651 FPS 1,947 FPS 942 FPS
1280 x 1024 1,069 FPS 1,512 FPS 3,856 FPS 2,060 FPS 998 FPS
1280 x 720 1,519 FPS 2,142 FPS 5,153 FPS 2,793 FPS 1,366 FPS
800 x 600 2,871 FPS 4,352 FPS 6,059 FPS 3,316 FPS 1,633 FPS
320 x 240 16,682 FPS - 11,729 FPS 6,847 FPS 3,533 FPS
1280 x 96 11,784 FPS 14,825 FPS 20,413 FPS 13,268 FPS 7,495 FPS
1280 x 96 11,784 FPS 14,825 FPS 20,413 FPS 13,268 FPS 7,495 FPS
320 x 96 40,413 FPS - 20,413 FPS 13,268 FPS 7,495 FPS
128 x 32 - - 29,002 FPS 21,231 FPS 13,590 FPS

All-in-one

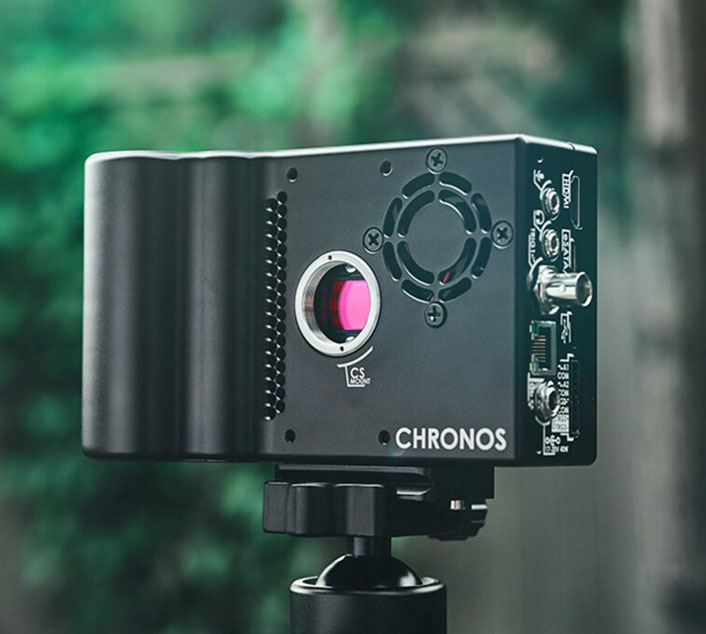

Standalone-353

Standalone

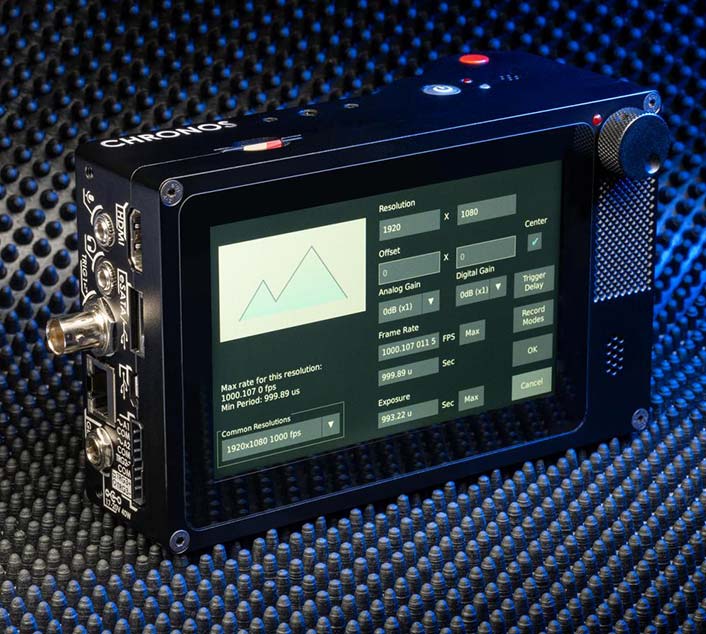

touchscreen-353

5" touchscreen

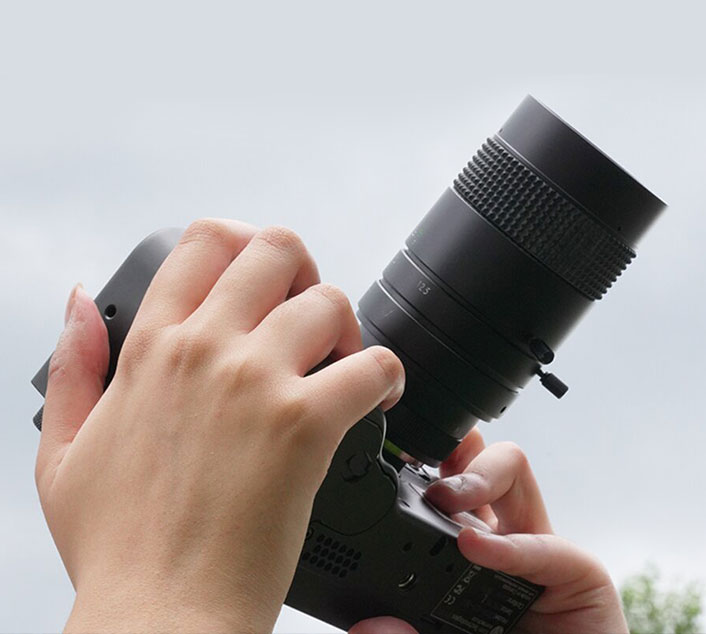

Portable-353

Portable

High-Speed Cameras
for Everyone

Affordable, professional high speed
cameras accessible to everyone.
