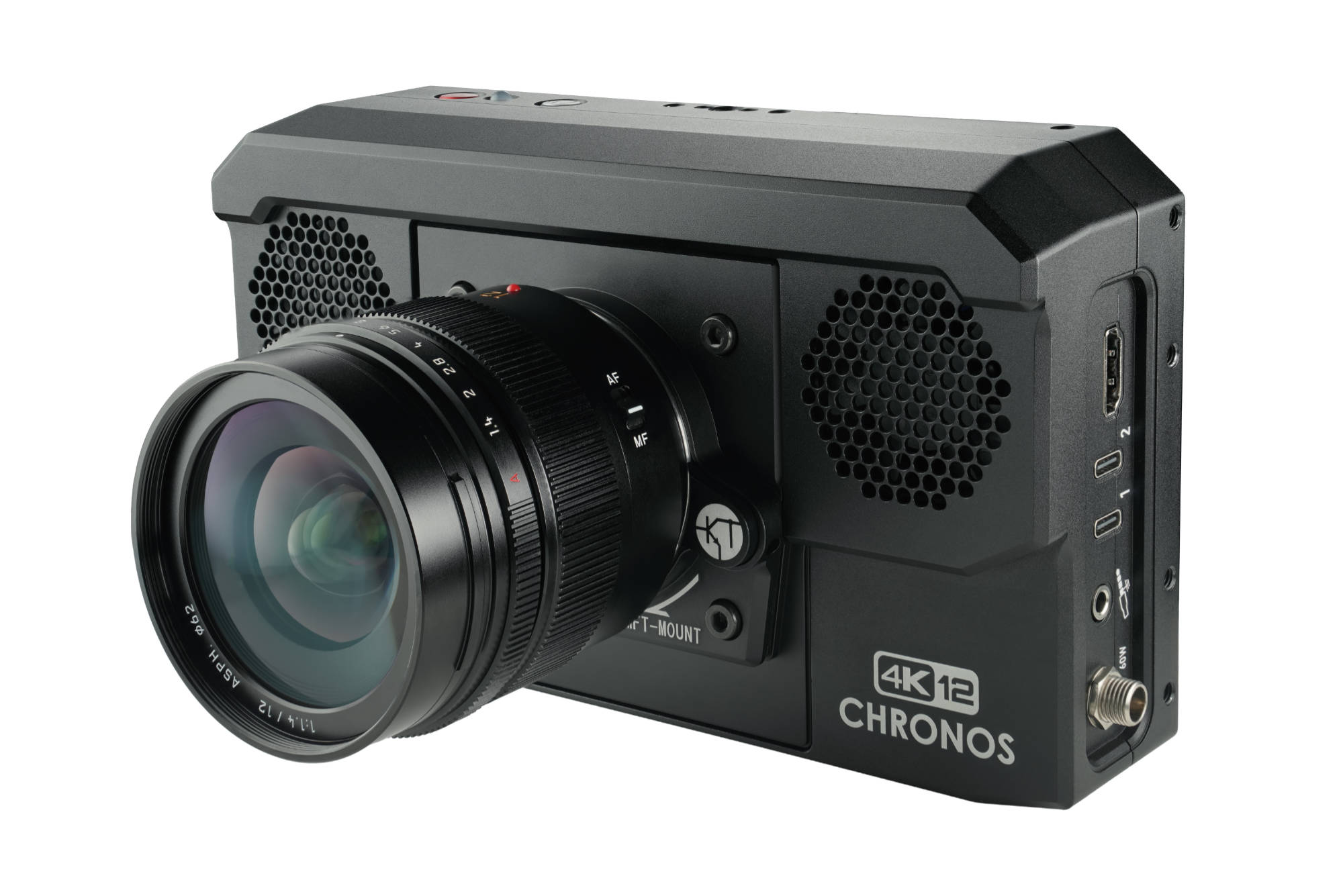

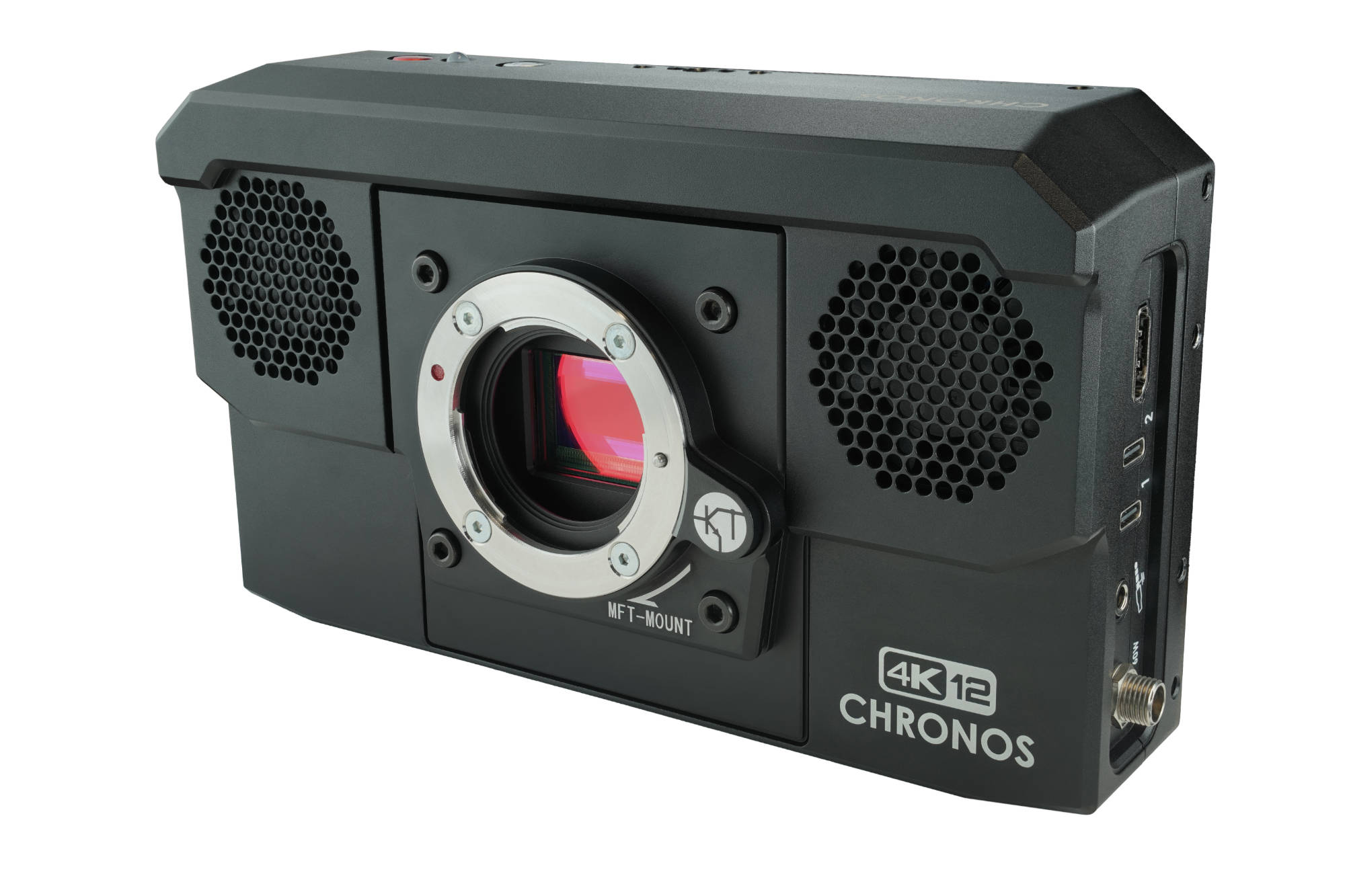

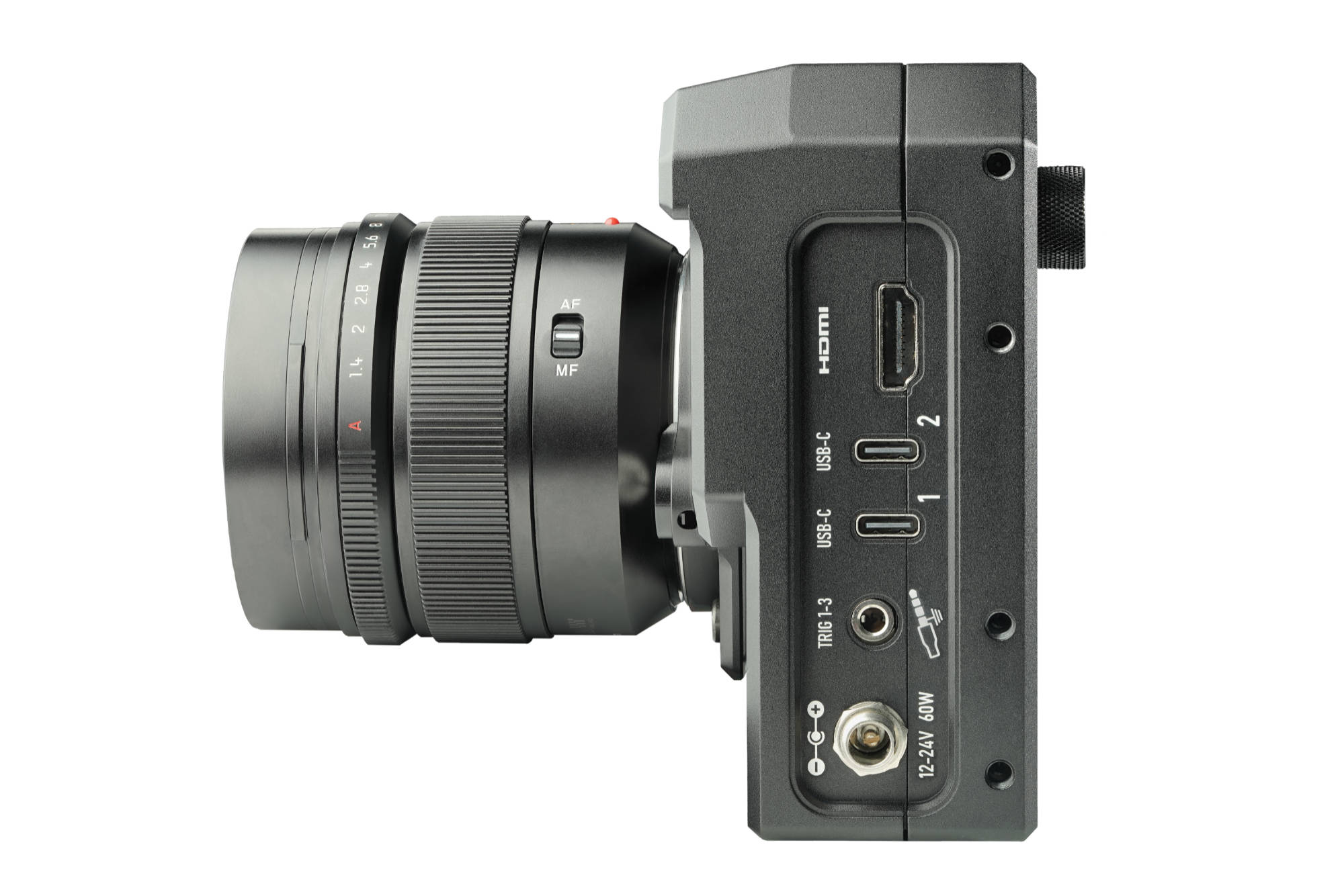

Chronos 4K12 Camera
Limited Stock Available
Current Features
Sensor:
4/3 (Color OR Mono)
Resolution/Frame Rate (4K):
1397fps (8-bit)
1006fps (10-bit)
481fps (12-bit)
Record Time:
11 Seconds
File Formats:
Cinema DNG
H.264/H.265
Lens Mounts:
C, E, EF, F and MFT (passive)
4K12 Upcoming Features
October 01, 2024
- Advanced Trigger (ability to set end of recording trigger delay, and ability to set start of recording before or after trigger, in units of time and frames)
- IRIG-B timecode receiver and frame timestamping
- Text Overlays for frame metadata
- Persistent Settings across reboots
- Frame Sync Output
- TIFF file saving
- Full PDF user manual
* Coming soon as free user-installable software features
January 07, 2025
- Remote control via Chronos Remote app (Desktop/Apple/Android)
- Remote control via customer-accessible API
- Network Video Streaming of live display or playback
- Fully featured HDMI Output
- Advanced record buffer management (Segmented and Gated Burst)
- WiFi networking and remote control
- Shutter Gating Input
- Triggered Exposure Input
Included with the 4K12
- Chronos 4K12 Camera Body
- Mount Plate
- Lens Mount Shim Kit
- 3.0mm Allen Key
- Trigger Switch Cable
- 3.5mm to Dual-BNC Adapter Block
- SD Card
- D-Tap to Barrel Jack Cable
- 3.5mm to 4-pin Terminal Block
- 90W DC Power Supply
- Region-Specific Power Cord
- Quickstart Guide
- Certificate of Quality
- Nanuk 920 Carrying Case

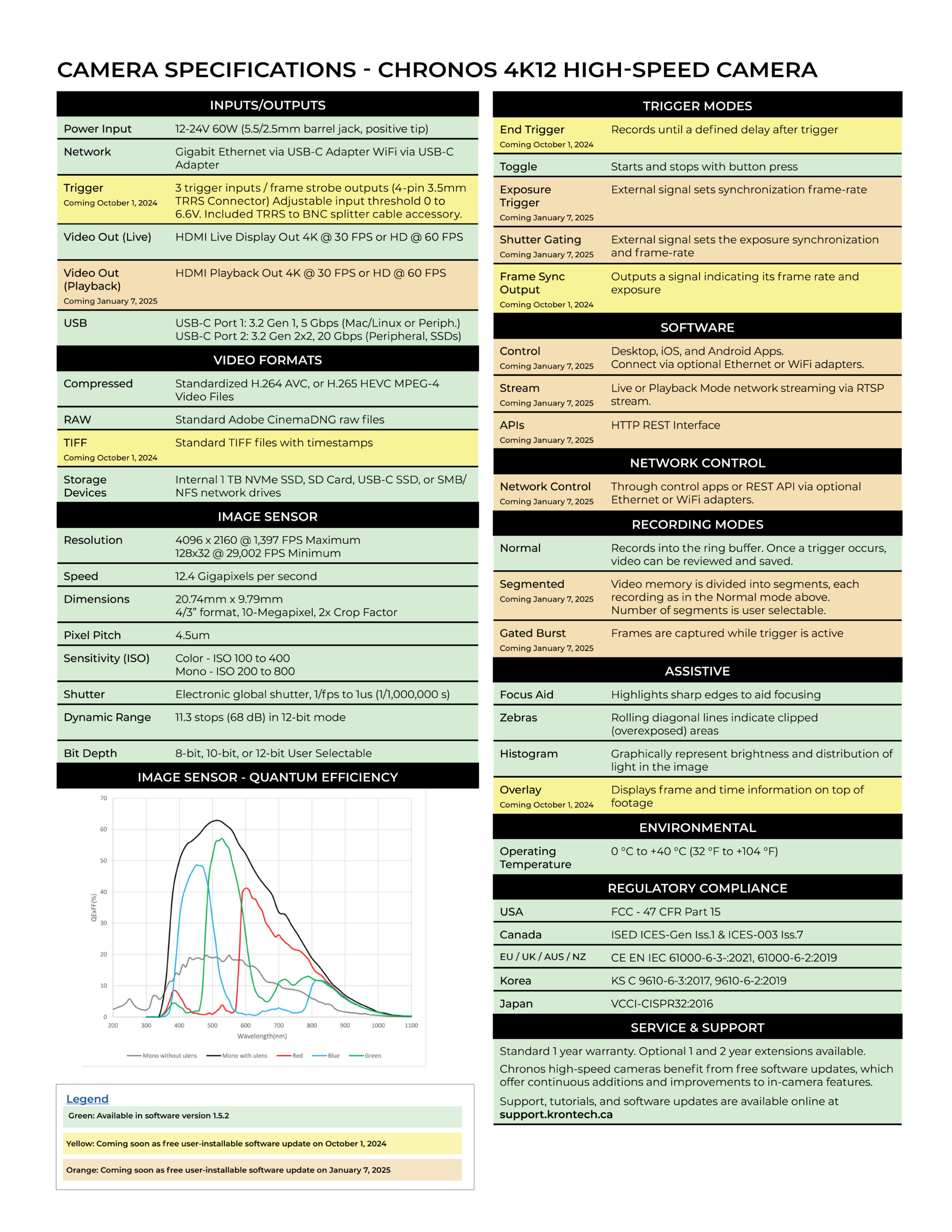

| Specification | Chronos 1.4 | Chronos 2.1-HD | Chronos 4K12 |
|---|---|---|---|
| Max Resolution | 1920 x 1080 (HD) at 1,000 FPS | 1920 x 1080 (HD) at 1,000 FPS | 4096 x 2160 (4K) at 1,397 FPS |
| Minimum Resolution | 320 x 96 at 40,413 FPS | 640 x 96 at 24,046 FPS | 128 x 32 at 29,002 FPS |
| Throughput | 1.4 Gigapixels per second | 2.1 Gigapixels per second | 11.8 Gigapixels per second |
| Memory Options | 8 GB, 16 GB, 32 GB | 8 GB, 16 GB, 32 GB | 128 GB |
| Record Time at Max Resolution | 4s (8GB), 8s (16GB), 16s (32GB) | 2.7s (8GB), 5.5s (16GB), 11s (32GB) | 11s (128GB) |
| Save Formats Uncompressed | CinemaDNG Raw, TIFF Raw | CinemaDNG Raw, TIFF Raw | CinemaDNG Raw |
| Save Formats Compressed | H.264/AVC MPEG-4 File Format | H.264/AVC MPEG-4 File Format | H.264/AVC & H.265/HEVC MPEG-4 File Format |
| Built-In Storage | - | - | TB NVMe SSD |
| Built-In Touchscreen | 5" 800x480 High Brightness LCD | 5" 800x480 High Brightness LCD | 5" 800x480 High Brightness LCD |
| Built-In Battery | Removable, 1.5 Hour Runtime | Removable, 1.5 Hour Runtime | - |
| Power Input | 17-20 Volts DC 40W | 17-20 Volts DC 40W | 12-24 Volts DC 60W |
| Size & Weight (Without Lens) | Handheld 1.06 kg (2.34 lbs) | Handheld 1.06 kg (2.34 lbs) | Handheld 1.32 kg (2.91 lbs) |
| - | CHRONOS 1.4 | CHRONOS 2.1-HD | CHRONOS 4K12 New | ||||
| Bit Depth | 12-bit | 12-bit | 8-bit | 10-bit | 12-bit | ||
4096 x 2160 4K | - | - | 1,397 FPS | 1,006 FPS | 481 FPS | ||
3840 x 2160 UHD | - | - | 1,491 FPS | 1,006 FPS | 481 FPS | ||
2048 x 2016 2K | - | - | 2,065 FPS | 1,082 FPS | 518 FPS | ||
1920 x 1080 HD | - | 1,000 FPS | 3,651 FPS | 1,947 FPS | 942 FPS | ||
| 1280 x 1024 | 1,069 FPS | 1,512 FPS | 3,856 FPS | 2,060 FPS | 998 FPS | ||
| 1280 x 720 | 1,519 FPS | 2,142 FPS | 5,153 FPS | 2,793 FPS | 1,366 FPS | ||
| 800 x 600 | 2,871 FPS | 4,352 FPS | 6,059 FPS | 3,316 FPS | 1,633 FPS | ||
| 320 x 240 | 16,682 FPS | - | 11,729 FPS | 6,847 FPS | 3,533 FPS | ||
| 1280 x 96 | 11,784 FPS | 14,825 FPS | 20,413 FPS | 13,268 FPS | 7,495 FPS | ||
| 1280 x 96 | 11,784 FPS | 14,825 FPS | 20,413 FPS | 13,268 FPS | 7,495 FPS | ||
| 320 x 96 | 40,413 FPS | - | 20,413 FPS | 13,268 FPS | 7,495 FPS | ||
| 128 x 32 | - | - | 29,002 FPS | 21,231 FPS | 13,590 FPS | ||
Chronos 4K12 high-speed cameras are available in Color or Monochrome versions for the same price.
The monochrome models feature a native sensor with no color filters, resulting in improved light sensitivity (ISO) and higher effective resolution due to the lack of color filters and the subsequent Bayer Pattern demosaic algorithm.
Monochrome sensitivity (ISO) for the Chronos 4K12 is 200 - 800.
Please contact our Sales team if you are interested in a Chronos 4K12 monochrome camera, so that we may assist you directly.
